Synergy Logic IO modules

Every module at Synergy Logic's published price — final pricing confirmed on your PO. Image left, technical spec right — add to cart with a quantity, or push an item into the application configurator.

DC Inputs 3

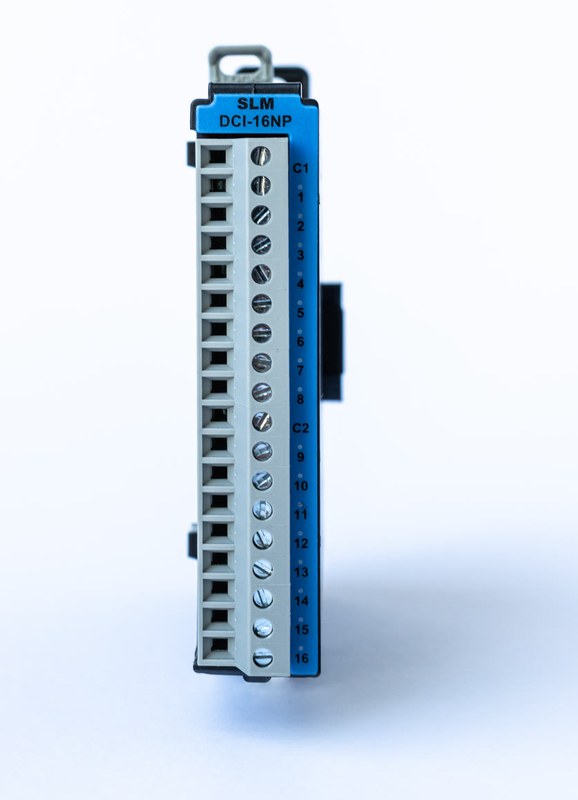

SLM-DCI-16NP product photo

SLM-DCI-16NP

16-Channel DC Input — 12–24 VDC Sink/Source
IO points/card 16Rating 12–24 VDCCurrent 20 mA/chConfig Sink/Source, 2 isolated commons

Fast response DC input module with two isolated commons for flexible wiring.

$92.40list · +tax/ship

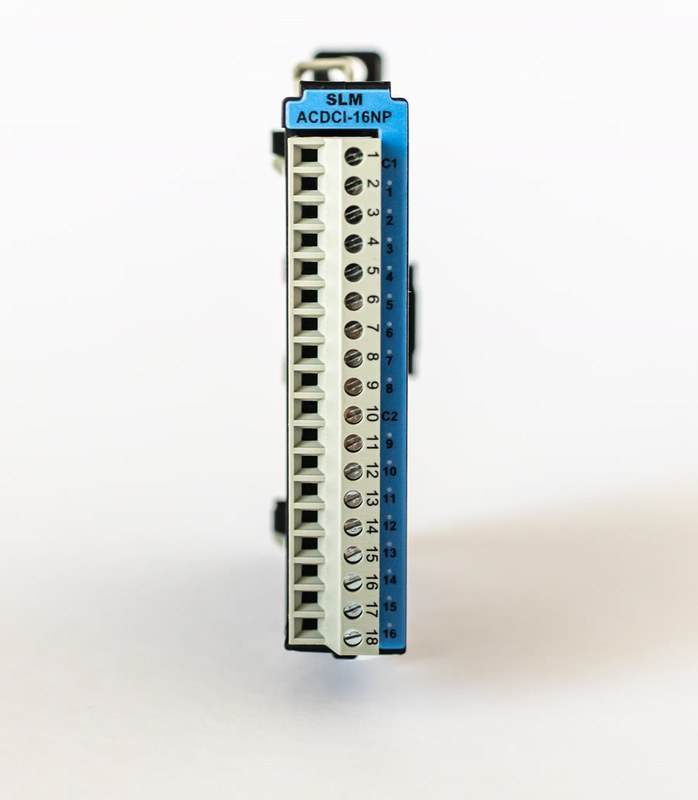

SLM-ACDCI-16NP product photo

SLM-ACDCI-16NP

16-Channel AC/DC Input — 24 VAC/VDC Sink/Source
IO points/card 16Rating 24 VAC/VDCCurrent 3.4 mA/ch @ 24 VAC/VDCConfig Sink/Source, 2 isolated commons

Accepts either AC or DC field signals on the same module, with two isolated commons.

$92.40list · +tax/ship

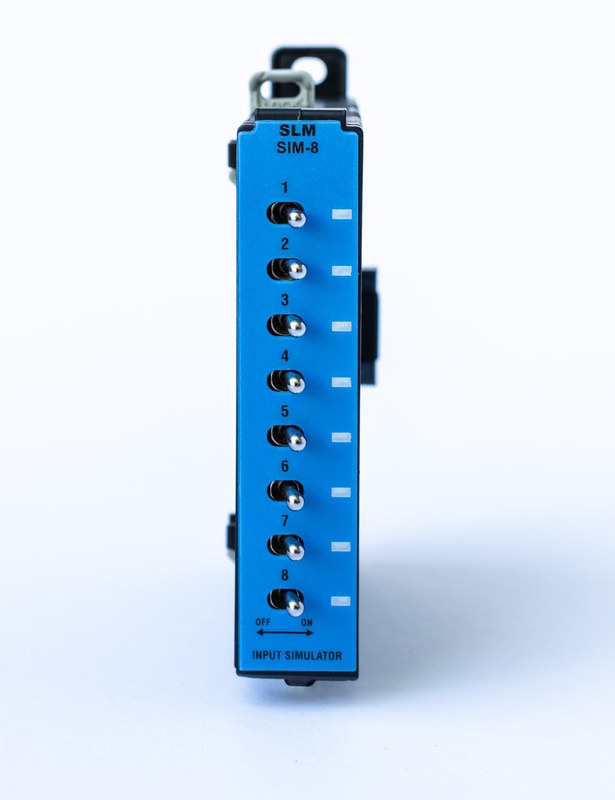

SLM-SIM-8 product photo

SLM-SIM-8

8-Channel Toggle Switch Simulator
IO points/card 8Rating InternalConfig Onboard toggle switches

Onboard toggle switches for testing, simulation, or manual overrides — no field wiring required.

$52.00list · +tax/ship

DC Outputs 4

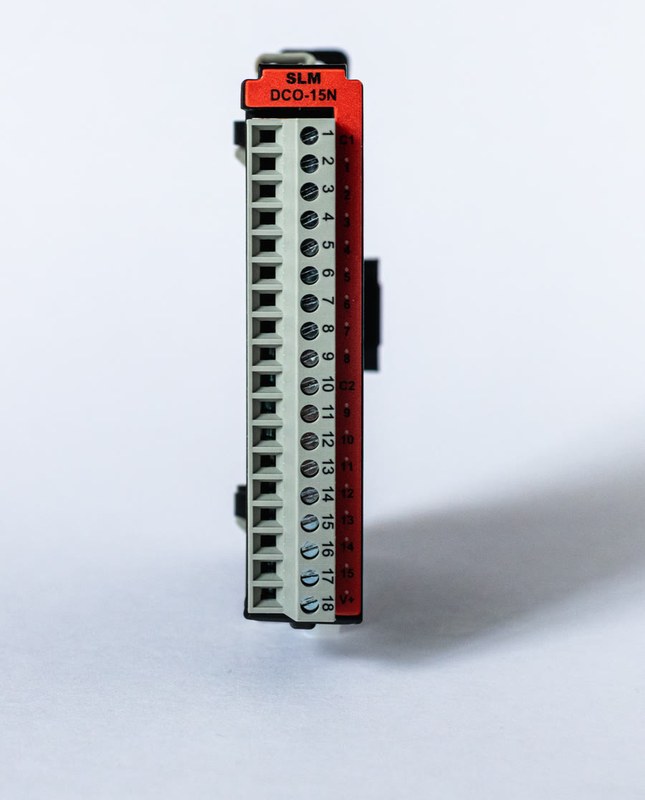

SLM-DCO-15N product photo

SLM-DCO-15N

15-Channel DC Output — 3.3–24 VDC Sinking
IO points/card 15Rating 3.3–24 VDCCurrent 1 A/ch, 8 A/commonConfig NPN sinking transistor

NPN sinking transistor outputs for driving DC loads like solenoids and indicators.

$88.80list · +tax/ship

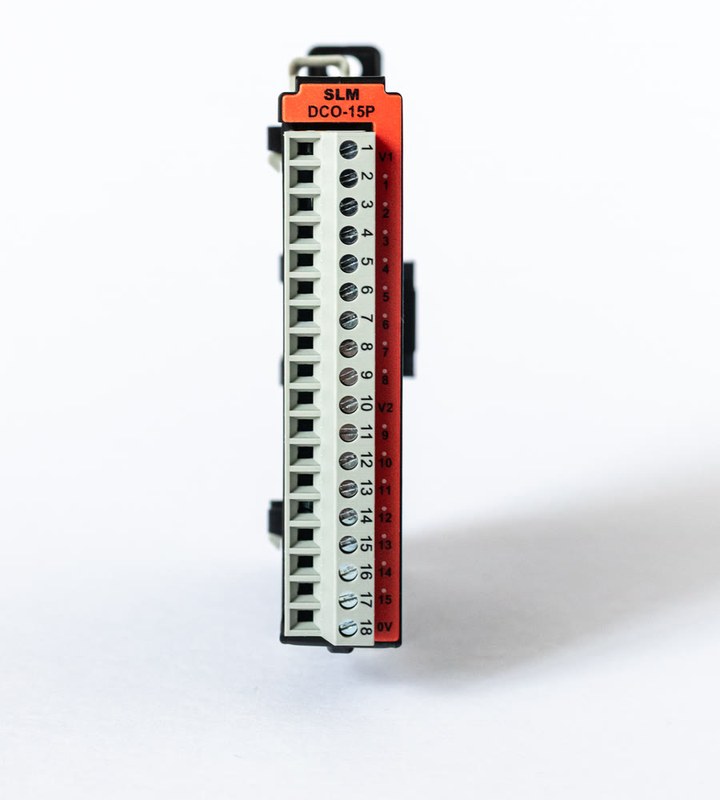

SLM-DCO-15P product photo

SLM-DCO-15P

15-Channel DC Output — 12–24 VDC Sourcing
IO points/card 15Rating 12–24 VDCCurrent 1 A/ch, 8 A/commonConfig PNP sourcing transistor

PNP sourcing transistor outputs for driving DC loads like solenoids and indicators.

$88.80list · +tax/ship

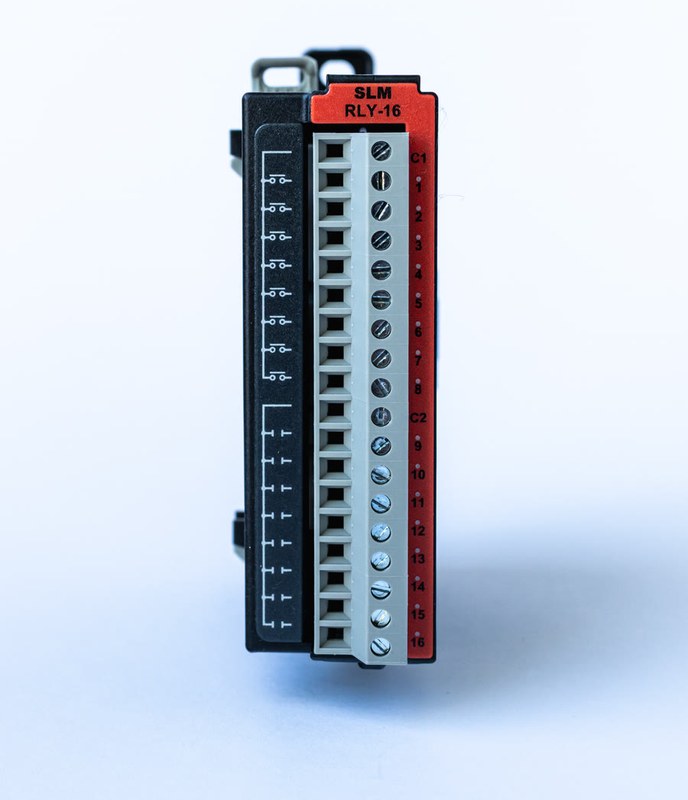

SLM-RLY-16 product photo

SLM-RLY-16

16-Channel Relay Output — FORM A
IO points/card 16Rating 6.25–30 VDC / 6–120 VACCurrent 2 A/relay, 8 A/commonConfig Relay FORM A, 2 commons

6.25–30 VDC or 6–120 VAC relay switching across two common terminals for AC or DC loads.

$126.00list · +tax/ship

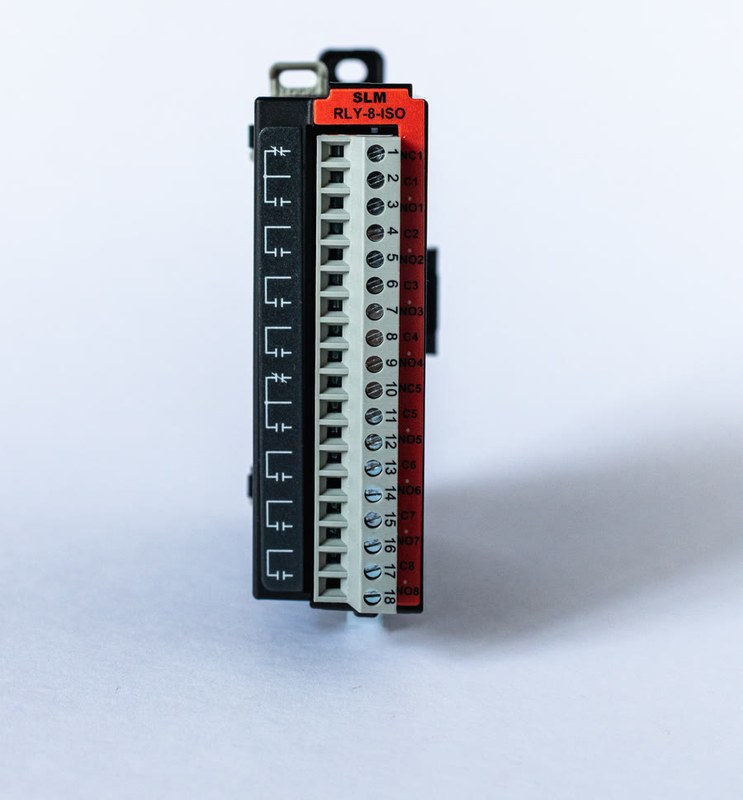

SLM-RLY-8-ISO product photo

SLM-RLY-8-ISO

8-Channel Isolated Relay Output
IO points/card 8Rating 6–24 VDC / 6–120 VACCurrent 3 A/relayConfig 2 FORM C + 6 FORM A, isolated

Individually isolated relay outputs (2 FORM C, 6 FORM A) rated for 6–24 VDC or 6–120 VAC loads.

$96.00list · +tax/ship

Analog Inputs 3

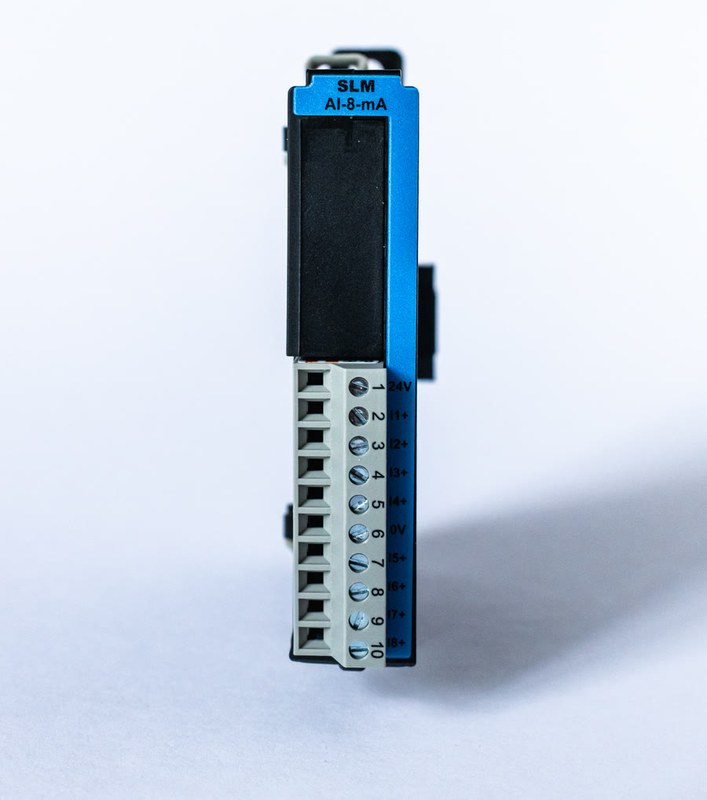

SLM-AI-8-mA product photo

SLM-AI-8-mA

8-Channel Analog Input — 0–20 mA, 13-bit
IO points/card 8Rating 0–20 mA (current)Config 13-bit, under/over-range diagnostics

Precision current input module with under/over-range diagnostics per channel.

$153.60list · +tax/ship

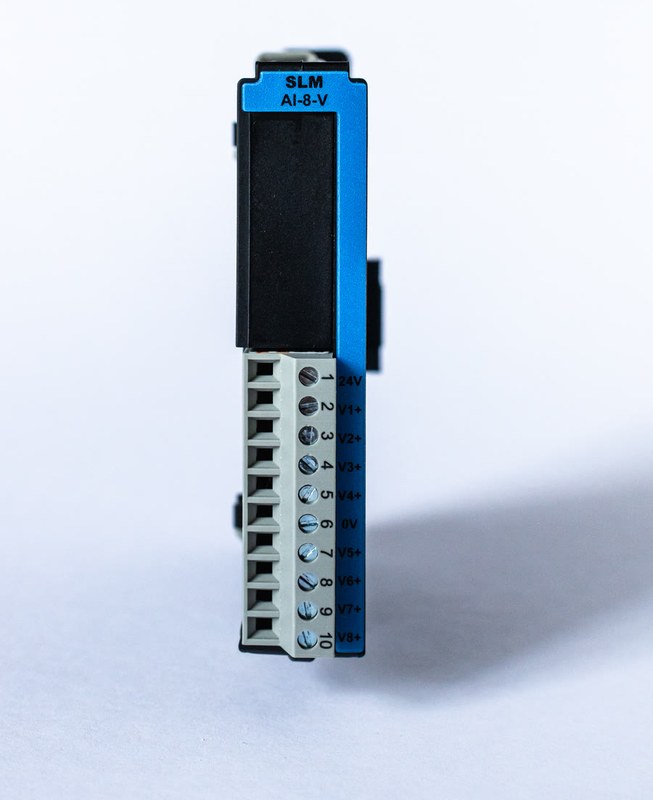

SLM-AI-8-V product photo

SLM-AI-8-V

8-Channel Analog Input — 0–10 V, 13-bit
IO points/card 8Rating 0–10 VConfig 13-bit, under/over-range diagnostics

Precision voltage input module with under/over-range diagnostics per channel.

$151.20list · +tax/ship

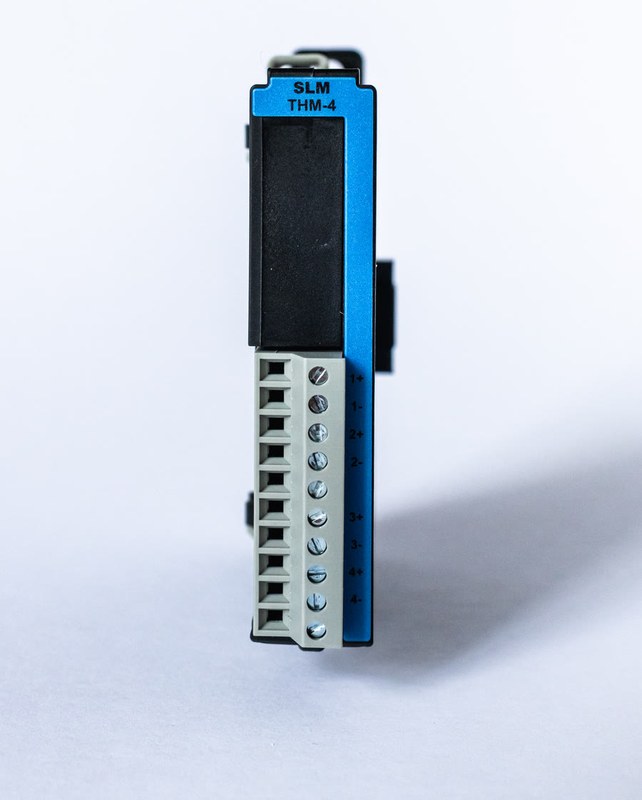

SLM-THM-4 product photo

SLM-THM-4

4-Channel Thermocouple Input
IO points/card 4Rating J,K,T,E,R,S,B,N,C typesConfig Thermocouple, burnout detection, ±0.1°C

Supports J, K, T, E, R, S, B, N, and C thermocouple types with burnout detection, accurate to ±0.1°C.

$206.40list · +tax/ship

Analog Outputs 2

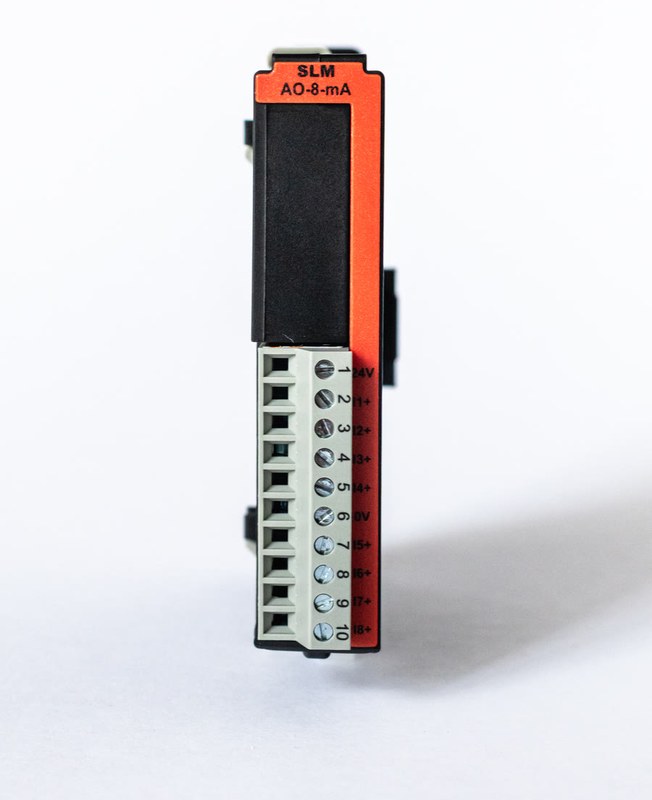

SLM-AO-8-mA product photo

SLM-AO-8-mA

8-Channel Analog Output — 4–20 mA, 12-bit
IO points/card 8Rating 4–20 mA (current)Config 12-bit, configurable failsafe timeout

Precision current output module with a configurable failsafe timeout value.

$196.80list · +tax/ship

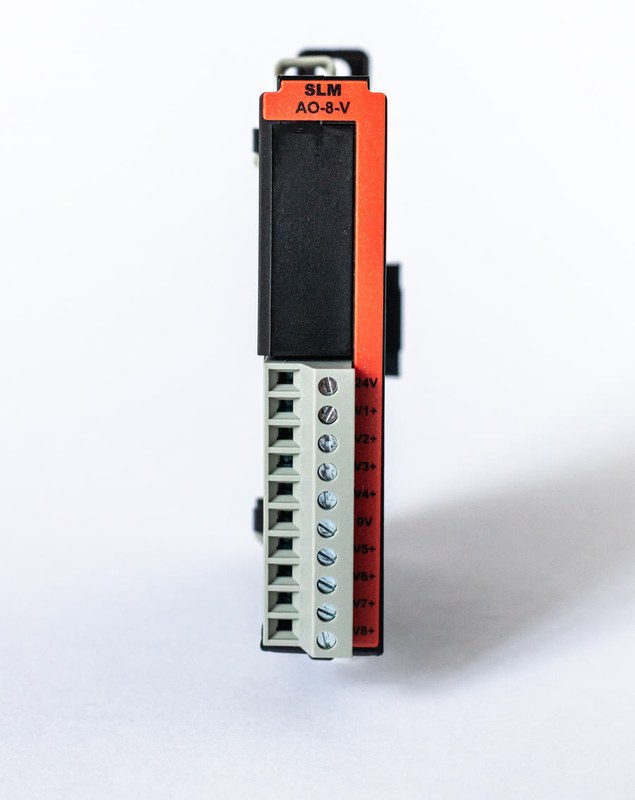

SLM-AO-8-V product photo

SLM-AO-8-V

8-Channel Analog Output — 0–10 V, 12-bit
IO points/card 8Rating 0–10 VConfig 12-bit, configurable failsafe timeout

Precision voltage output module with a configurable failsafe timeout value.

$182.40list · +tax/ship

AC Inputs & Outputs 1

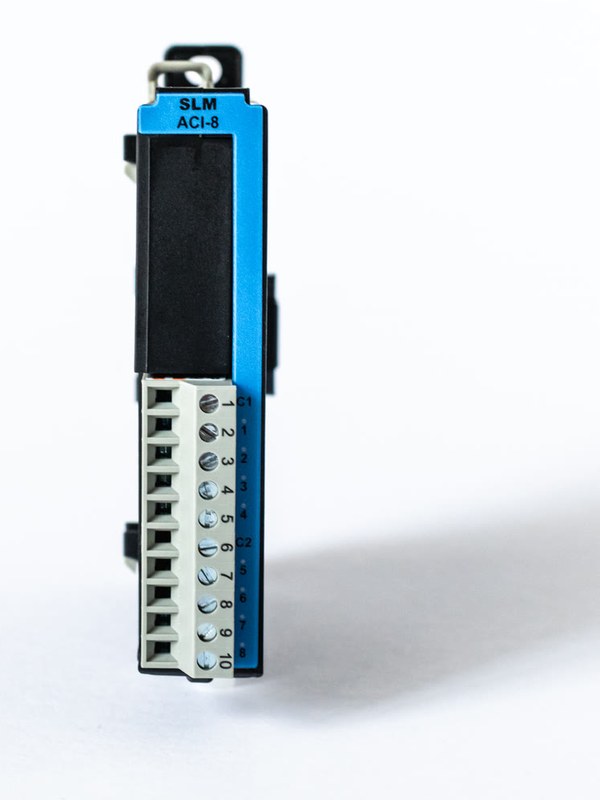

SLM-ACI-8 product photo

SLM-ACI-8

8-Channel AC Input — 100–240 VAC
IO points/card 8Rating 100–240 VACCurrent 7/8.5 mA @ 100 VAC; 14.2/17 mA @ 240 VAC (50/60 Hz)Config AC, 2 isolated commons

Fast response AC input module for line-voltage sensors and switches, two isolated commons.

$108.00list · +tax/ship

Discrete Combination 3

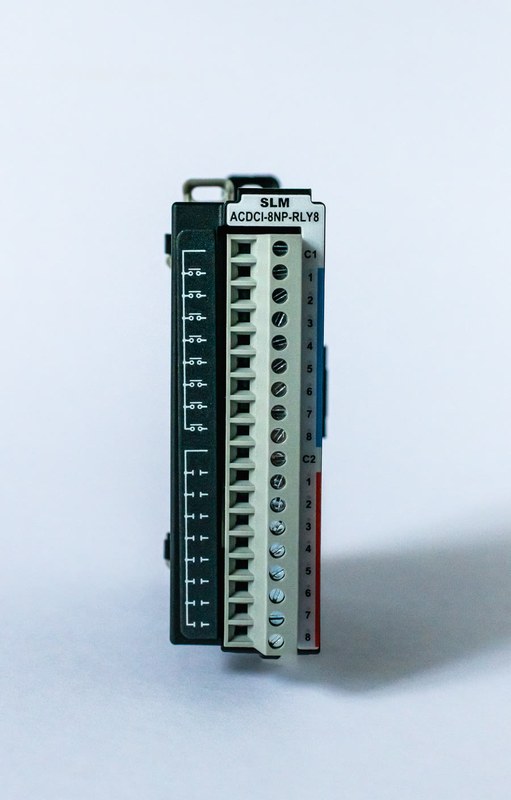

SLM-ACDCI-8NP-RLY8 product photo

SLM-ACDCI-8NP-RLY8

8 In (24 VAC/VDC) + 8 Out (Relay)
IO points/card 8 In / 8 OutRating 24 VAC/VDC in · relay outCurrent relay 1 AConfig 8 sink/source in + 8 FORM A relay

8 sink/source AC/DC inputs paired with 8 FORM A relay outputs rated to 120VAC.

$132.00list · +tax/ship

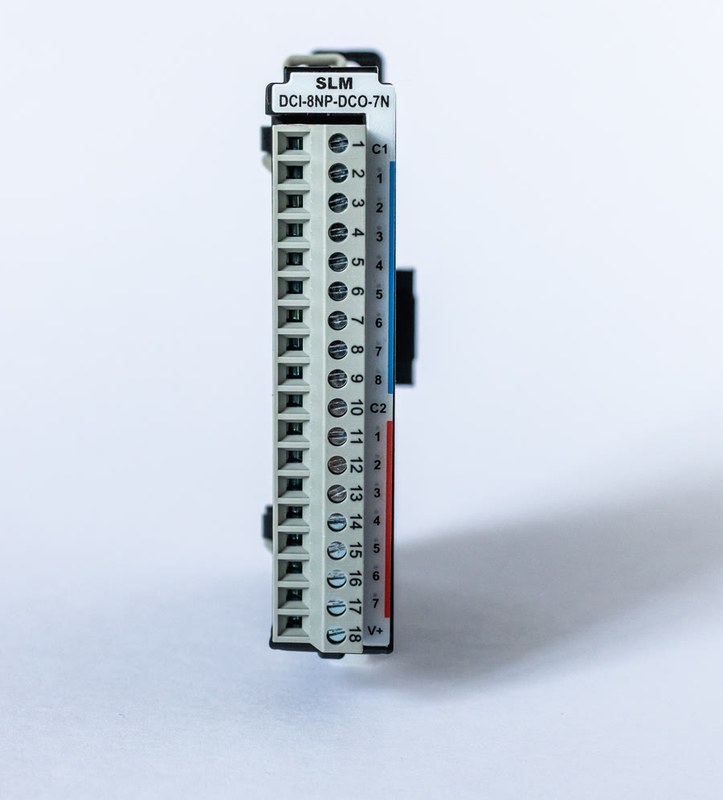

SLM-DCI-8NP-DCO-7N product photo

SLM-DCI-8NP-DCO-7N

8 In (12–24 VDC) + 7 Out (Sinking)
IO points/card 8 In / 7 OutRating 12–24 VDCCurrent outputs 1 A/chConfig 8 DC in + 7 NPN sinking out

8 sink/source DC inputs paired with 7 sinking DC outputs on one module.

$102.00list · +tax/ship

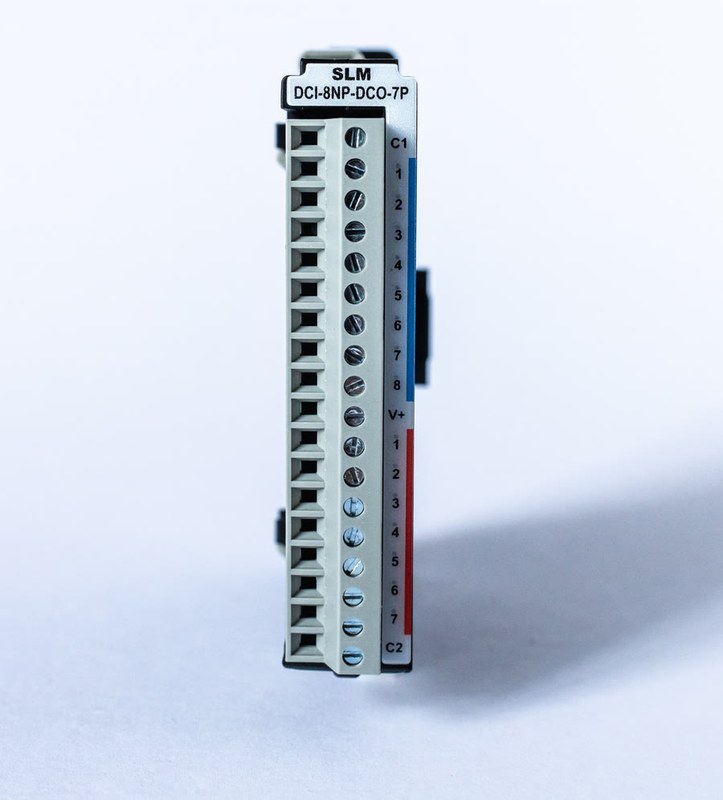

SLM-DCI-8NP-DCO-7P product photo

SLM-DCI-8NP-DCO-7P

8 In (12–24 VDC) + 7 Out (Sourcing)
IO points/card 8 In / 7 OutRating 12–24 VDCCurrent outputs 1 A/chConfig 8 DC in + 7 PNP sourcing out

8 sink/source DC inputs paired with 7 sourcing DC outputs on one module.

$96.00list · +tax/ship

Analog Combination 2

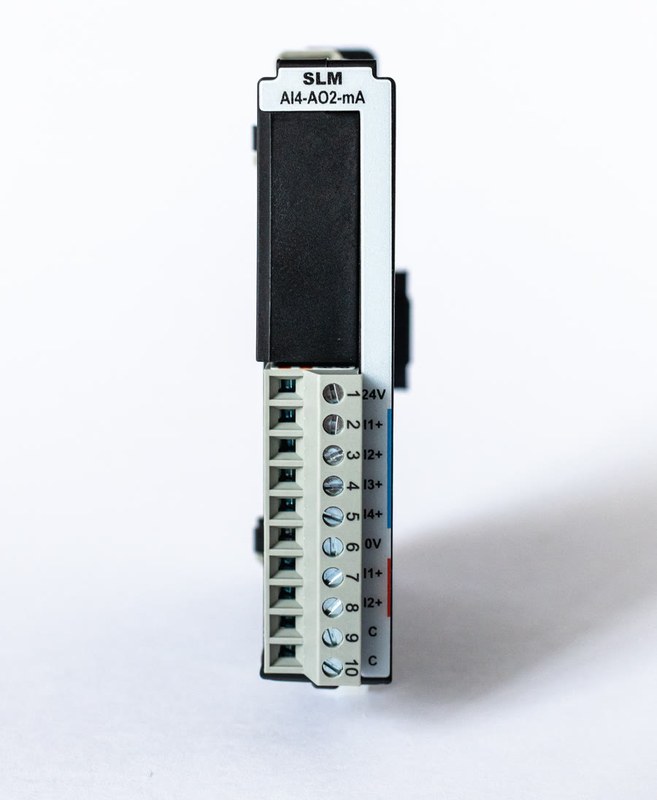

SLM-AI4-AO2-mA product photo

SLM-AI4-AO2-mA

4 In + 2 Out — 0–20 mA / 4–20 mA
IO points/card 4 In / 2 OutRating 0–20 mA in · 4–20 mA outConfig 13-bit input / 12-bit output

4 current inputs and 2 current outputs on a single module, with 13-bit inputs and 12-bit outputs.

$190.80list · +tax/ship

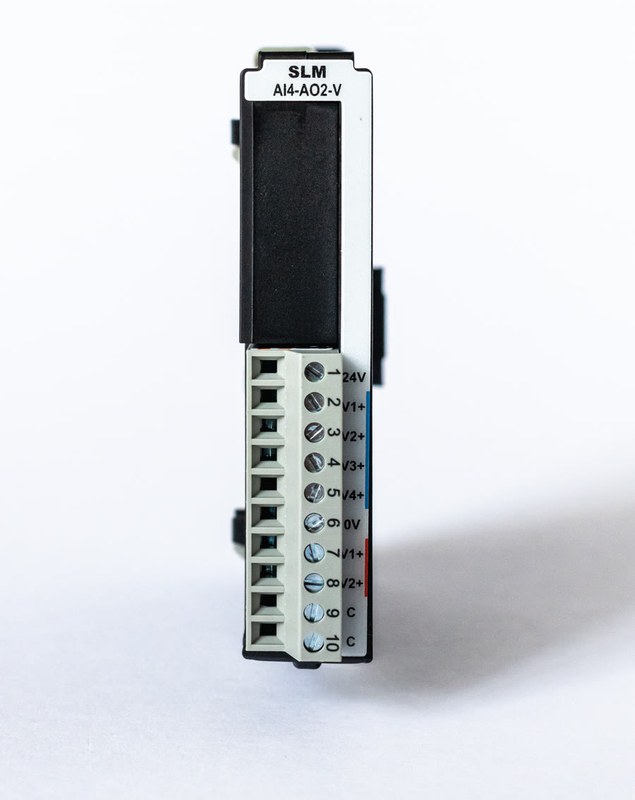

SLM-AI4-AO2-V product photo

SLM-AI4-AO2-V

4 In + 2 Out — 0–10 V
IO points/card 4 In / 2 OutRating 0–10 VConfig 13-bit input / 12-bit output

4 voltage inputs and 2 voltage outputs on a single module, with 13-bit inputs and 12-bit outputs.

$176.40list · +tax/ship

Base System 1

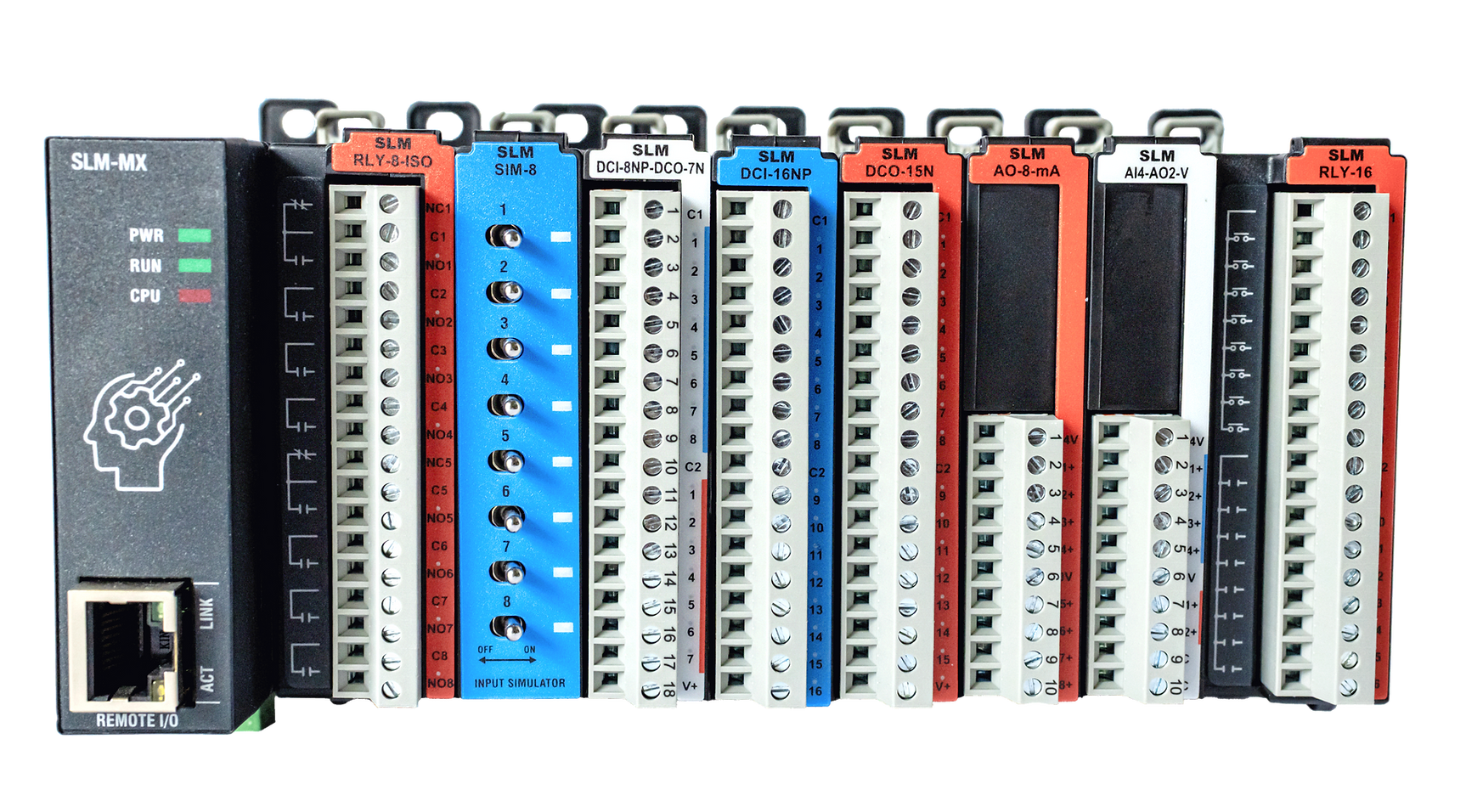

SLM-MX product photo

SLM-MX

Modular Remote I/O Base System
IO points/card Rack for up to 8 modulesRating 24 VDC systemConfig Modbus TCP, UL 61010 listed

Modular, rugged remote I/O chassis — the platform that hosts the SLM modules. Starting at $99.

$99.00list · +tax/ship
